Need help with AML query to connect two independent ItemTypes via referencing item

Hi Eli,

thanks for the ideas! I made some progress and at the same time you opened Pandora's box.

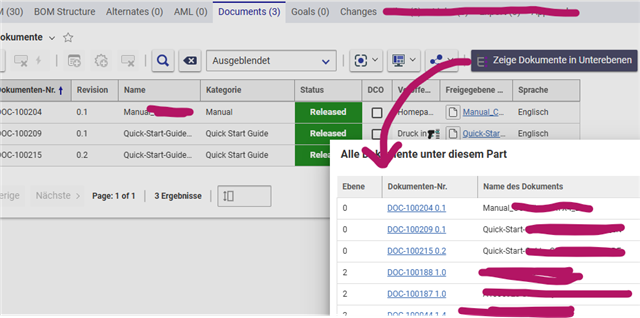

The original idea was that I reuse my custom "all-purpose-all-in-one view". It´s a single Method that renders the result of an AML query to a simple table in a pop-up window. See following example. It uses a AML query to collect all documents hidden in the multiple BOM levels:

That´s why I asked for the plain AML query - cause I wanted to use the same building technique to "save time" (worked well so far).

As this kind of rendering is basically a simplified QD/TGV clone, there is of course nothing wrong with using the original QD/TGV combo. The resulting view is basically the same and QDs can deal with referencing items. Perfect!

Quote: Out of curiosity - do you have any constraints preventing you from using a Query Definition in this scenario?

There were none - before I tested it. In my environment it doesn't work, but it´s not the fault of Innovator. It´s my federated data that I pull via an onGet query.

My current federation solution is optimized to display federated data in the client (including grid relevant functionality like filter options, paging, etc.). See: Best way to highlight (fully) federated data in grids and views?

Now I learned that my federated data isn't perfect enough for AML queries. My "crafted" item properties mainly consist of id and keyed_name. With id and keyed_name they work as clickable links in grid and Forms, but they doesn't work in QDs.

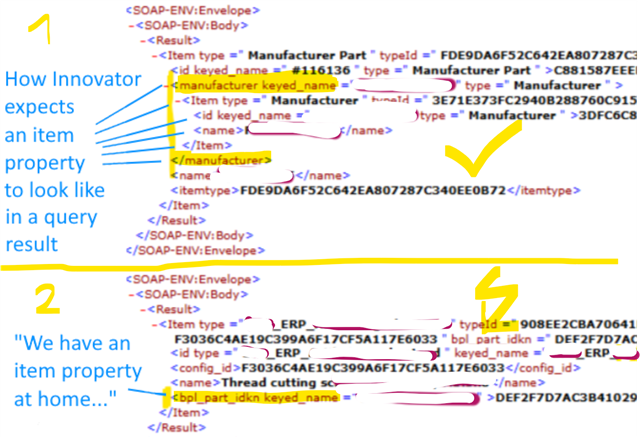

I think we can tell the reason when we look a the data structure of similar ItemTypes (like Manufacturer Part with the Manufacturer item property). Typically item properties use a bit more data:

I am right now a bit unsure of what to do.

- Use an additional server Method (as you suggested)
- Rework my federation solution so I can use QD?
- Make an additional federated view that already contains all the data?
- I also got some ideas from another community member that I don´t need to over engineer everything and there is nothing wrong in using more than one AML query to get the data.

I think I'll let the problem sit for a while and hope it resolves itself.  It´s a fun challenge, but it´s just there because my users are spoiled. In the past people would have been totally fine with an SSRS report for this kind of view.

Edit: In QD I right now get following error message when testing the query:  <faultstring>Item attribute 'itemTypeName' not set !</faultstring> . In only appear when my custom federated ItemType is included. For testing purposes I added various additional attributes, but couldn´t get rid of the error message.

I made some progress. I solved the original use case by making an additional SQL view. Not my favorite solution, but this way I was able to read the data with a much simpler AML query.

But this topic is still a rabbit hole regarding the query definition.

I so far didn´t succeed in using my federated ItemType inside a QD. Even if I create a completely new QD with just the Federated ItemType I get the "<faultstring>Item attribute 'itemTypeName' not set !</faultstring>" error message.

And I think I know the reason. QDs work different than the Grid. Right know my federation onGet query is optimized for the classic "Grid - Relationship - Form" trinity. But QDs work different, as they support more additional functionality like levels and reverse properties. My Federated ItemType cannot work, cause it doesn't provide the data that a QD needs. I right now just return the regular item structure but QDs works a lot with references.

Eli Donahue Do you know if there is any information of the basic data structure a Query Definition uses when pulling data? It´s not an important topic right now, but I see a lot of fun use cases for these kind of queries.

I made some progress. I solved the original use case by making an additional SQL view. Not my favorite solution, but this way I was able to read the data with a much simpler AML query.

But this topic is still a rabbit hole regarding the query definition.

I so far didn´t succeed in using my federated ItemType inside a QD. Even if I create a completely new QD with just the Federated ItemType I get the "<faultstring>Item attribute 'itemTypeName' not set !</faultstring>" error message.

And I think I know the reason. QDs work different than the Grid. Right know my federation onGet query is optimized for the classic "Grid - Relationship - Form" trinity. But QDs work different, as they support more additional functionality like levels and reverse properties. My Federated ItemType cannot work, cause it doesn't provide the data that a QD needs. I right now just return the regular item structure but QDs works a lot with references.

Eli Donahue Do you know if there is any information of the basic data structure a Query Definition uses when pulling data? It´s not an important topic right now, but I see a lot of fun use cases for these kind of queries.

I can check with the PM and architect for QD to see if we have any info to share. Using federated data in QD’s certainly sounds like a helpful use case.

PS: “We have an item property at home” gave me a good laugh
